BJ21004-J
| Color: | Please select |
|---|---|
| Quantity: | |

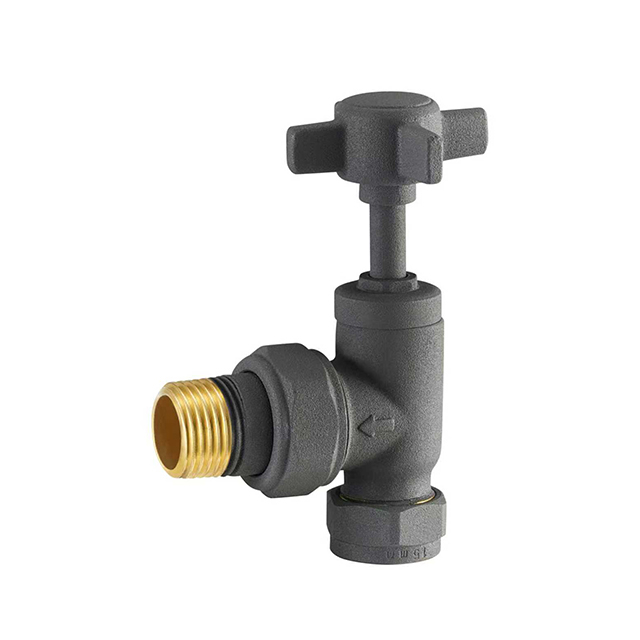

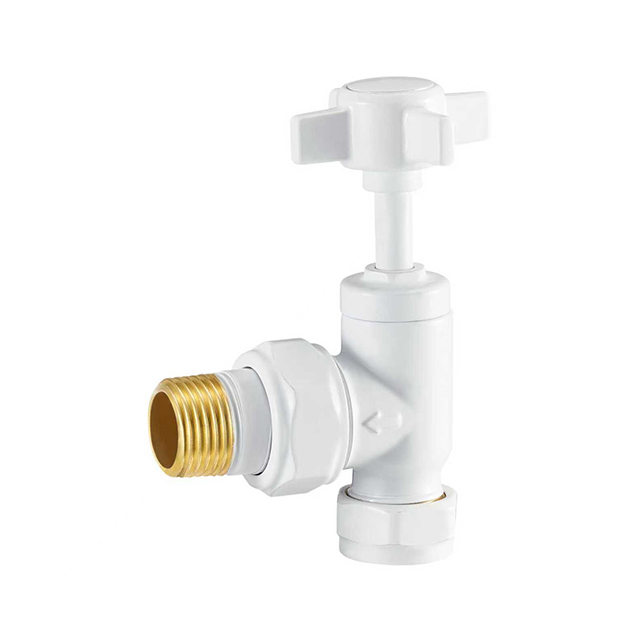

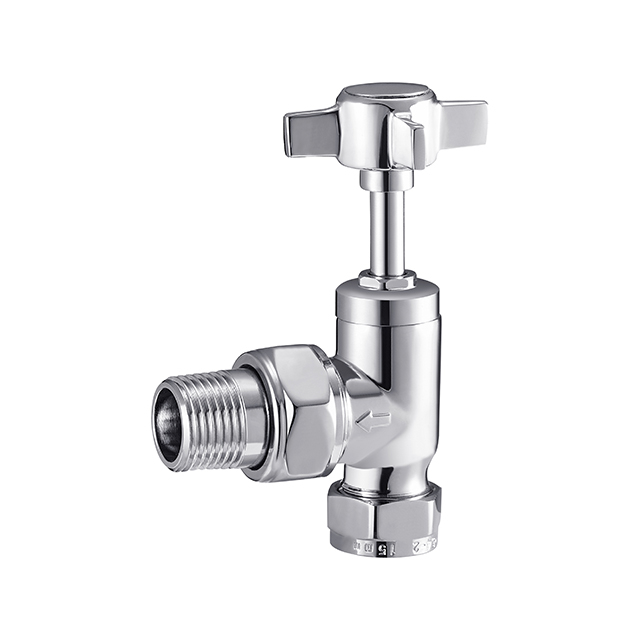

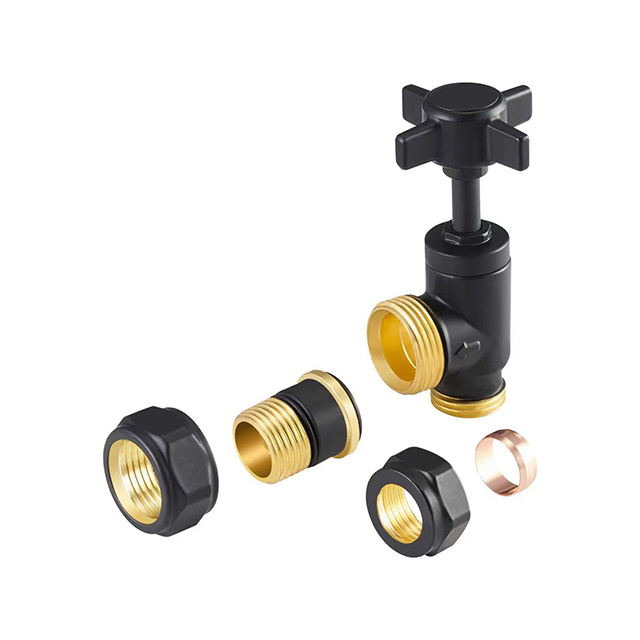

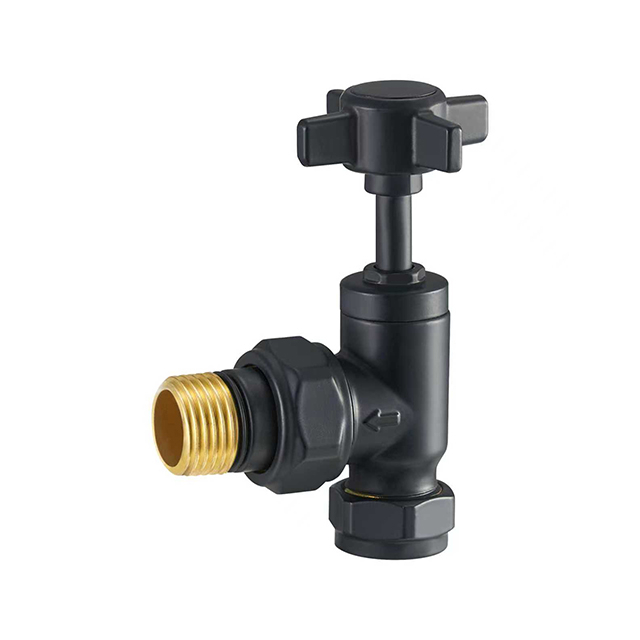

Chrome Angled Traditional Radiator ValvesTraditional radiator refers to a type of radiator that uses water to cool the air conditioning system, which is usually installed in a building and has a large heat exchange area. Chrome Angled Traditional Radiator Valves are usually used to control the flow of water in the radiator, regulate the temperature of the air conditioning system, and ensure that the air conditioning system operates efficiently and safely.
Basic Information| Descriptions | Chrome Angled Traditional Radiator Valves 15mm |
| Model No. | BJ21004-J |
| Material | Brass H58-3 or CW617N |
| Processing | Forging, CNC Machining |
| Size | G1/2''x 15MM for center heating system |
| Color | White RAL9016/Anthracite RAL7016/Chrome |
| Working Medium | Hot/Cold Water |
| Max Working Temperature | 120℃ |
| Max Working Pressure | 10 bar |
| Test Standard | CE |
| Material Details for Each Part | Brass Body, Brass Cartridge, Brass Handle |
Product Feature15mm connection for copper pipe installation
3 colors for more match options-Chrome/White/Anthracite
Forging process, 100% leakage test to eliminate the possibility of leakage
For angled wall mounted pipes installation, manual temperature adjustment, to match with traditional towel radiators
High precision machining, top quality polish and chrome/paint finish, make the valve's quality stable and reliable
How We Control The Quality Of Radiator Valve?Compared with market products, we do 4 steps to control the quality.
1st step: Adopt high quality hand polish and select the supplier who is doing the best quality of chrome plating.
2nd step: After each process of polishing&chrome plating, we do 100% inspection to check the quality. If there is any scratches or chrome defect, we will ask the workers to rework and make rechecking again, until it is qualified.
3rd step: To avoid any scratches or defect during the transportation and assembling, each product must be put and isolated neatly.
4th step: 100% leakage test under high&low pressure, lifetime test, breaking test to assure the quality
Installation Tips
It is recommended that the radiator valves should be installed on the bottom of the towel rail or radiator where the pipes come into and exit the radiator. Normally they will be fitted at the bottom left and right of the radiator, but sometimes needed to be fitted to the bottom middle of the radiator.
There are different types of radiator valves, such as angled, corner, straight, and h-block valves. The angled radiator valves are normally installed with the pipes come from the wall, while the straight one are normally installed with the pipes come from the floor. And the H-Block radiator valve should be connected to the radiator with a bottom middle connection.
When rotating the hand wheel of the valve, the valve’s core will be moved up or down to increase or decrease the amount of water flow while entering or leaving. By controlling the flow of water, the heat output on the towel rail or radiator can be controlled.
Why Choose UsCompetitive Price: We are the factory direct sale to abroad markets, that means you can get the price from the original manufactures, no any traders or middle companies.
Expertise and experience: We have a team of experts with extensive knowledge and experience in the industry for more than 25 years. We understand the complexities and nuances of our products/process/equipment, allowing us to provide high-quality solutions.
Quality Products: We prioritize delivering products that meet the highest quality standards. Every product to be delivered to our customers must be checked and approved by test before shipment. We 100% commit the quality we deliver will make you satified and exceed your expectations.
Timely Delivery: We understand the importance of delivering our products on time. Our efficient processes and logistics ensure prompt delivery, minimizing any unnecessary delays.
Innovation and Technology: We focus on innovation and devote to the latest technologies to develop cutting-edge products and solutions, to ensure that you benefit from the latest features and functionalities.
F A QQ1. Are you a factory or trading company?
A: We are a factory and trade company together. We have our own factory with different workshops and production equipment lines. Welcome to visit our factory！
Q2. Can I have a sample order ?
A: Yes, sample order can be offered to test and check quality.
Q3. Do you have any MOQ limit for one order?
A: For promotion items: No MOQ, 1pc available & For non-promotion items: 1000~3000pcs MOQ according to different models
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It takes approx 30 days to arrive. Airline shipping can be also optional.
Q5. What’s your production lead time?
A: Sample order: 7~10 days；Bulk order: 30~45 days
Q6. Can you do OEM?
A: Yes, welcome to provide drawings or samples for customization.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
